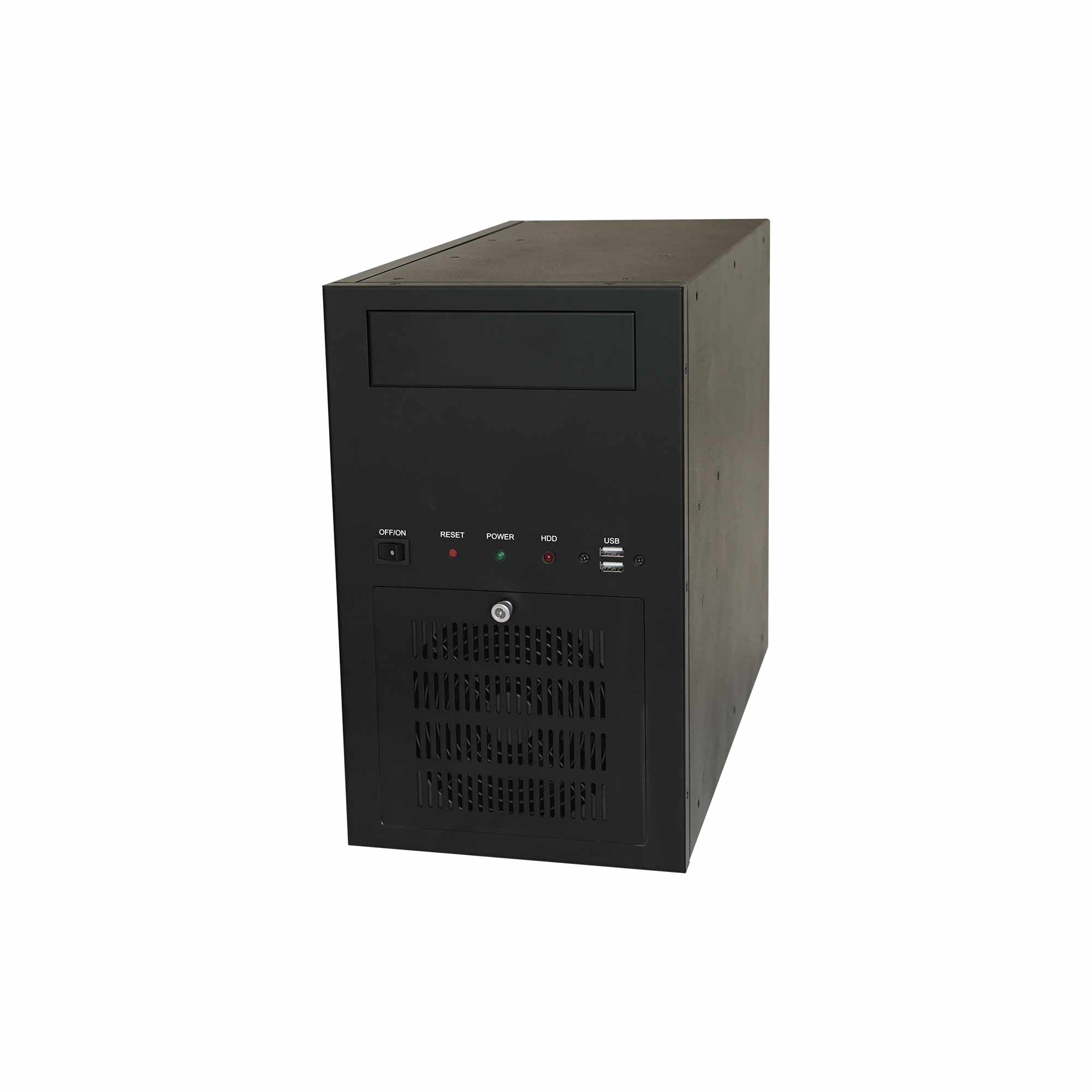

塔式工控機 CEFS-TA22-Q87A

Intel^?4代酷睿 i7/i5/i3/奔騰^?/賽揚^?處理器，功耗最高支援到95W
采用Q87芯片組, 支持RAID 0/1/5
支持雙千兆網口
支持VGA、DVI雙屏異顯
內置PCI,PCIe插槽，支持多種模塊擴展
抗震動磁盤架設計，可支持1個5.25寸光驅、2個2.5"SSD、2個3.5"HDD硬盤
前部可訪問 USB接口，更易于數據傳輸
海岸線上的USB端口支持Ennoconn USB SR Pro技術

產品介紹
詳細參數
產品型錄
驅動程序

產品介紹：

Intel? 4th Core? i7/i5/i3/Pentium?/Celeron? Processor, LGA1150 Socket, TDP up to 95W

系統 System

處理器 Processor	Intel^? 4th Core? i7/i5/i3/Pentium^?/Celeron^? Processor, LGA1150 Socket, TDP up to 95W
芯片組 Chipset	Intel^? Q87
內存 Memory	Dual Channel, 4 x U-DIMM Slot, DDR3 (1.5V) 1333/1600MHz, up to 32GB
圖形 Graphics	Intel^? HD Graphics, dual display
存儲 Storage	5 x SATA3.0, 1 x M.2 2242/2280 (SATA3.0 signal)
操作系統 OS	Windows7/8/10, Linux

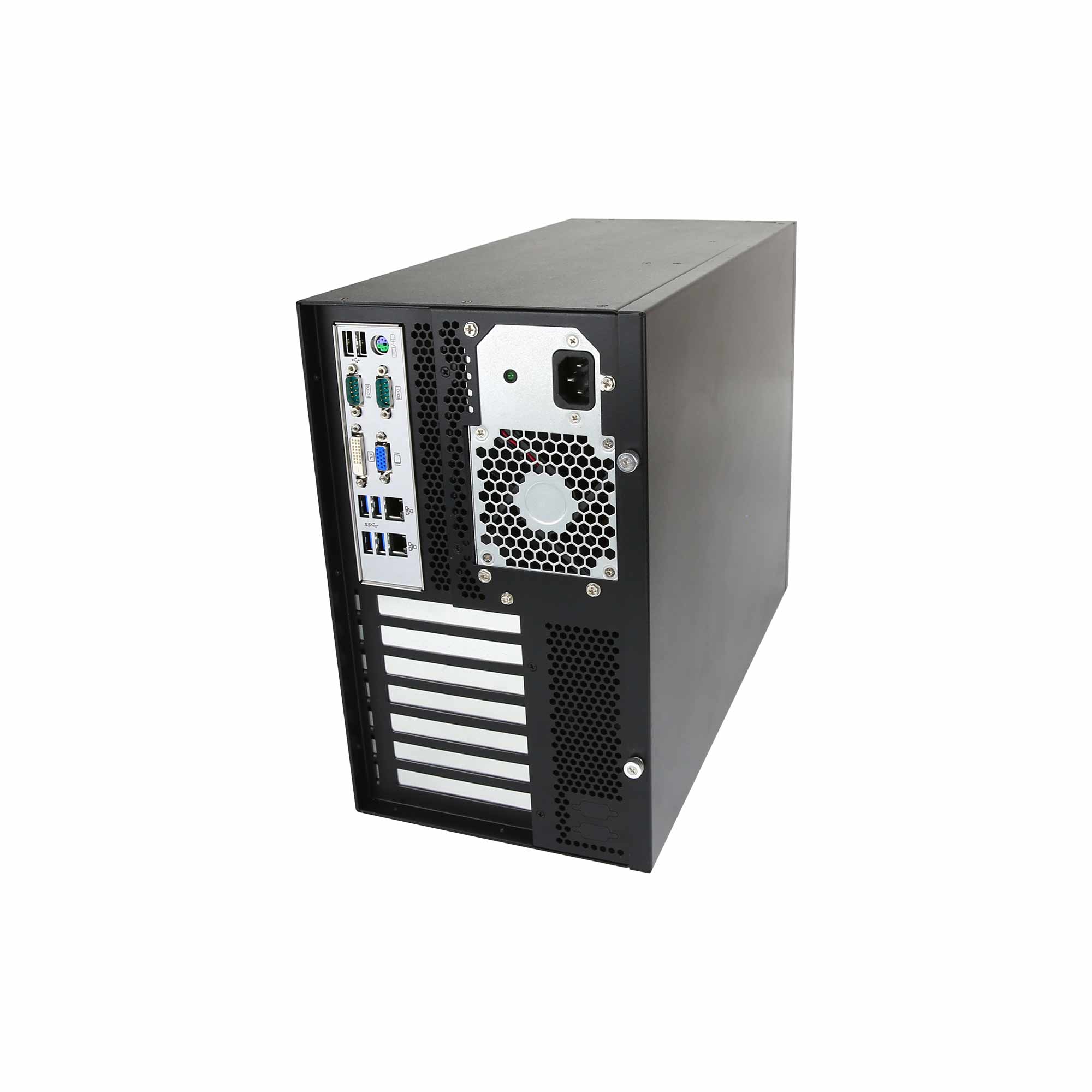

外部接口 External I/O

網口 Ethernet	2 x RJ45 Intel i211AT GbE (10/100/1000 Mbps)
顯示 Video	1 x DVI-D: max resolution up to 1920 x 1200@60Hz 1 x VGA: max resolution up to 1920 x 1200@60Hz
串口 COM	2 x RS232/422/485 (with auto flow control)
USB	4 x USB 2.0, 4 x USB 3.0(Support Ennoconn USB SR Pro Technology)
PS/2	1 x PS/2(mini-DIN-6)
按鈕 Button	1 x Power Button, 1 x Reset Button
指示燈 LED	1 x Power LED, 1 x HDD LED

內部接口 Internal I/O

擴展接口 Expansion	1 x PCIe X 16 (Gen3), 1 x PCIe X 4 (X 1 Link), 1 x PCIe X 4(X 4 Link), 4 x PCI
風扇 FAN	1 x CPU Fan, 2 x System Fan
USB	4 x USB 2.0 (Type-A share USB signal with one USB2.0)
GPIO	1 x 16-bit GPIO
串口 COM	2 x RS232/485, 2 x RS232

環境 Environmental

操作溫度 Operating Temp.	0℃ ~ 40℃
存儲溫度Storage Temp.	-20℃ ~ 60℃
濕度Relative Humidity	5% ~ 95%, 非凝結狀態Non-condensing
隨機振動 Random Vibration	5~500Hz, 1Grms (HDD)operation
正弦振動 Sine Vibration	5~500Hz, 2G Non-operation
機械沖擊 Shock	10G @ 11ms operation
